NDR585 Quad 3U VPX Microwave Tuner



Quad 3U VPX Microwave TunerThe NDR585 is a wideband, 4 channel, 3U OpenVPX microwave tuner that provides frequency coverage from 20 MHz to 18 GHz. The NDR585's industry leading channel density minimizes system level SWaP. Each of the 4 channels provides a 1 GHz analog IF output with a 500 MHz instantaneous bandwidth. The channels can tune both independently and phase coherently and multiple NDR585 units can be synchronized for phase coherent operation. The NDR585 incorporates a super-heterodyne RF conversion architecture to minimize spurious products and yield high dynamic range performance. The fully integrated synthesizers provide fast tuning, low phase noise and the tuning flexibility to choose an alternative IF output center frequency (an IF different than 1 GHz) if desired. The NDR585 includes an internal 100 MHz OCXO and accepts a 10 MHz reference input.





APPLICATIONS

  • Rapid Spectral Search
  • Multichannel DF and Beamforming
  • High Performance Airborne SIGINT
  • Wideband Recording

For a formal quotation, please contact sales@cyberradiosolutions.com


NDR585 Datasheet
[Download PDF]

To request a full datasheet, please click here.

NDR584 Quad 3U VPX Microwave Tuner



Quad 3U VPX Microwave TunerThe NDR584 is a wideband, 4 channel, 3U VPX microwave tuner that provides frequency coverage from 100 MHz to 18 GHz. The NDR584's industry leading channel density minimizes system level SWaP. Each of the 4 channels provides a 1 GHz analog IF output with a 500 MHz instantaneous bandwidth. The channels can tune both independently and phase coherently and multiple NDR584 units can be combined for phase coherent operation. The NDR584 incorporates a super-heterodyne RF conversion architecture to minimize spurious products and yield high dynamic range performance. The fully integrated synthesizers provide fast tuning, low phase noise and the tuning flexibility to choose an alternative IF output center frequency (an IF different than 1 GHz) if desired. The NDR584 includes an internal 100 MHz OCXO and accepts both a 10 MHz reference input and a 1PPS input





APPLICATIONS

  • Rapid Spectral Search
  • Multichannel DF and Beamforming
  • High Performance Airborne SIGINT
  • Wideband Recording

For a formal quotation, please contact sales@cyberradiosolutions.com


NDR584 Datasheet
[Download PDF]

To request a full datasheet, please click here.

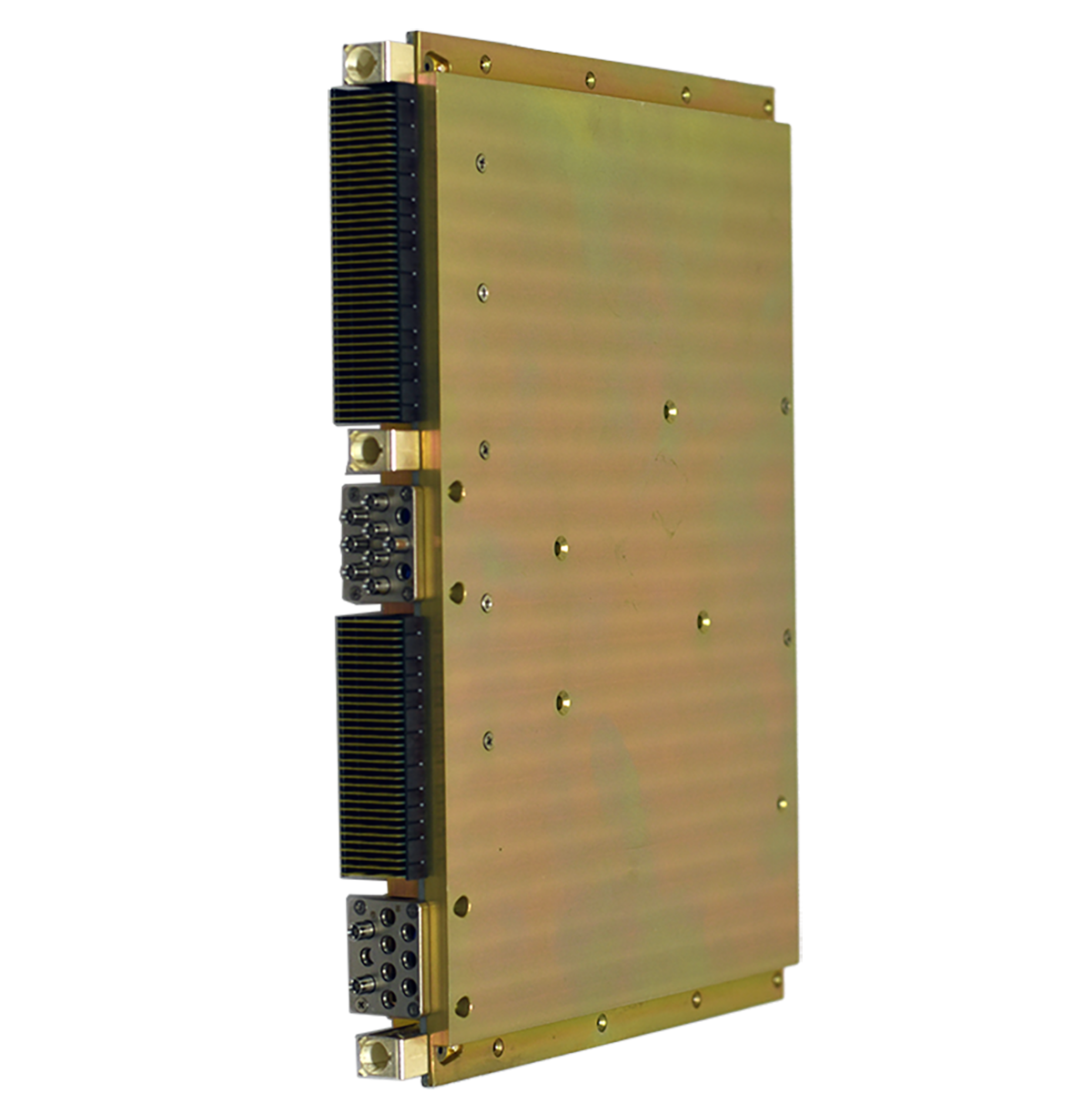

NDR378 6U VPX Digital Tuner



6U Open VPX Digital TunerThe NDR378 6U VPX digital tuner is an 8-channel, superheterodyne tuner that covers RF signals from 2 MHz to 6 GHz. It is a rugged 6U conduction cooled VPX module, per VITA 46/48/65/67. The NDR378 OpenVPX is designed as a 6U open architecture version of the existing NDR358 tuner to include RF performance, command set and all 4 DSP-based modes of operation. The NDR378 supports efficient system integration for existing NDR358 users. Integrated high dynamic range 16-bit Analog-to-Digital converters (ADC's) are utilized to digitize an 80 MHz wide IF at 256 Msps sample rate. Command and control of the digital tuner are via an Ethernet interface and power is derived from the P0 12V power supply input. Total power consumption is approximately 110 Watts. An on-board Xilinx Kintex UltraScale FPGA is used for the channelizer, the VITA-49 formatter, data multiplexer and the Digital IF data interface.





APPLICATIONS

  • Rapid Spectral Search
  • Multichannel DF and Beamforming
  • High Performance Airborne SIGINT
  • Wideband Recording

For a formal quotation, please contact sales@cyberradiosolutions.com


NDR378 Datasheet
[Download PDF]

To request a full datasheet, please click here.
